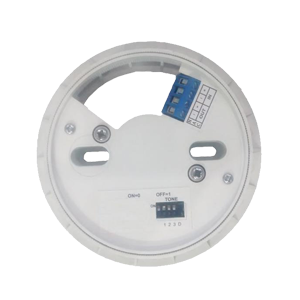

Conventional Sounder Base
RE-364 BS
Overview
The conventional sounder base are designed to be connected to conventional Fire Alarm Panels. And these conventional sounder base should be connected to the compatible control panel. The conventional sounder base receives their power from NAC terminal of Fire alarm control panel and once fire detected in the zone circuit then NAC output turns on this sounder base. A conventional detector is mounted on this sounder base and it operates from zone terminal of Fire alarm control panel.
Share This :
- 80dB sound output @1meter.
- 8 Different tone selection by using 4 way DIP Switch
- Low Standby Current.
- Compatible to all Ravel conventional panels.
- Ceiling Mountable
- Easy to install.

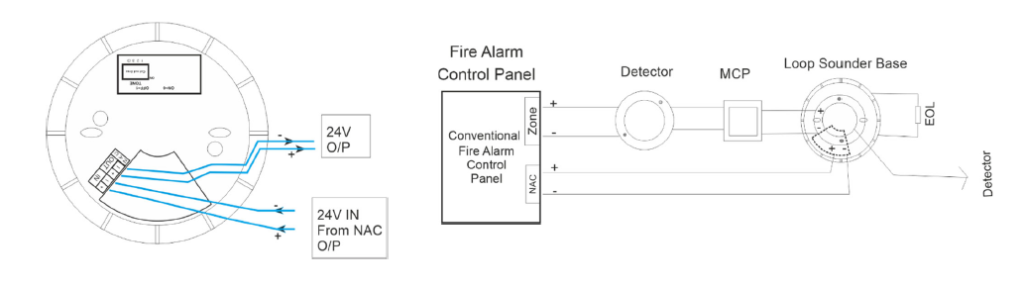

Connect the sounder base to the NAC terminal of a Fire Alarm Control Panel,according to the polarity.The wiring Terminal accepts solid or stranded cables up to mm2.
