Conventional Sounder / Cum Strobe

RE-716SS

Overview

Conventional Sounder cum strobe is efficient visual and audible dual tone generating device to meet the standards of NFPA72 (2016 edition).Two Audible tone settings continuous/temporal 3 of dB level range between 75dB to 85dB. Four types of visual candela setting output available. Strobe light consists of Hybrid LED. It can be flush / ceiling mounted with / without a back box.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL 1971,ULC‐S525,UL 464,ULC‐S526.
Low Current Draw.
Flexible optic design to meet the light dispersion.
4 candela settings:15/30/75/110cd output.
2 audible tone settings: Continuous/Temporal 3.
Slim and Sleek.
Fire label visibility for all direction.
180° coverage indication
Used in Fire, Burglar & Emergency Alarm System.

Electrical Specification
Light Source & Color	High power cool white LED
Pulse Duration	20ms
Max Current Draw(mA)	67 – 93mA
Flash Rate	1 flash per second
Operating Voltage	24VDC(16-33VDC) / FWR
Sounder Output	75dB to 85 dB
Mounting Options	Standard 4” * 4” back box
Dimension	5.5”L 4.7”W 2.0”D(140mmL120mmW51mmD)
Wiring Type	2
Screw Terminals	#12 to #18 AWG wires

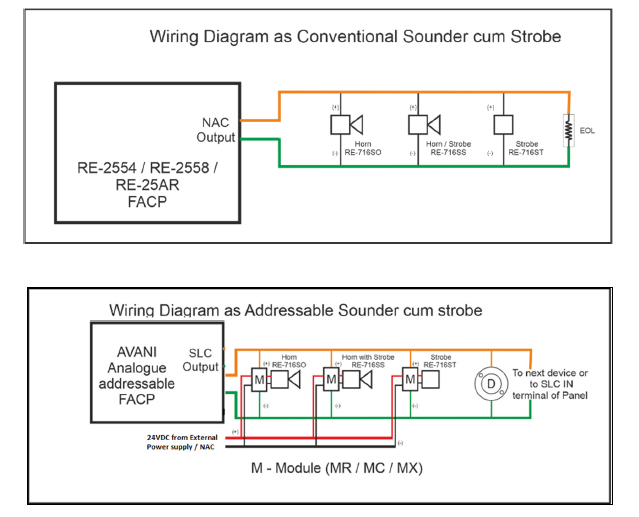

Wiring Diagram

Compatible Panel

Model	Description
AVANI	Analogue addressable Fire Alarm Control panel expandable upto 4 loop
AVANI db	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop
RE-25AR	Conventional Agent Release Control Panel
RE-2558/2554	Conventional 8 Zone / 4 Zone Fire Alarm Control Panel

Compatible Devices

Model	Description
RE-717MC	Addressable Control Module
RE-717MR	Addressable Relay Module
RE-717MX	Addressable Input Output Module
