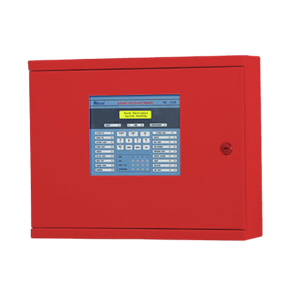

Agent Release Control Panel

RE-25AR – White

Overview

Agent Release Panel fully complies with UL-864 and NFPA-72. While implementing the latest in microprocessor technology for conventional panels ease to operate along with clear visible indications come at an advantage for the end user. These panel are a feature packed control unit performing dual function of detection and controlled release of gaseous agent. This panels have various correlation options like four zones for one agent release circuit or two detection circuit for one agent release circuit or another two detection for another agent release circuit The panel have all the safety features to prevent accidental release, easy to install, commission with user friendly programmable option, this panel is ideal choice to protect the premises.

Type of Colors

Special Features

UL Listed (9th Edition).
Switch Mode Power Supply.
Modular Construction, Serviceable.
Special logic circuitry to prevent accident release.
Auto Resettable Fuse.
Surge Protected.
Battery polarity & deep discharge protection.
Variable solenoid ON / OFF time.
Separate LED indications on front facia for individual Releasing Agent Circuit.
Lock and key facility for authorized access.

Electrical Specification
Primary Power	120 / 220VAC + 10%, 50 Hz, 2.5Amps, 100W
Standby Power	24VDC (2 No’s of 12 V, 12Ah sealed lead acid battery)
Operating Condition	Operating Temperature 0 – 49° C / 32 – 120° F. Relative Humidity 93 ± 2% RH (non-condensing) at 32 ± 2° C / 90 ± 3° F
Storage Temperature	0 – 60° C
Quiescent Current	120 mA.
Charging Circuit	Charging voltage 28 V, ± 2% nominal, Charging current 800mA (max)
Notification Appliance Circuits	Quantity - 2 No’s, Wiring style Class - B, Style Y, Operating voltage - 24VDC nominal, Current - 0.6A per circuit, Line drop - 1.8V, EOL resistor - 3K9, ½ watt
Releasing Agent Circuits	Quantity - 2 No’s, Wiring style - Class B, Style Y, Operating voltage - 24VDC nominal, Current - 0.6A per circuit, Line drop - 1.8V, EOL resistor - 3K9, ½ watt
DC Output	Quantity - 1 No, Voltage - 24VDC regulated, Current - 300mA (max)
Relays	Type - Form C, Quantity - 3 No’s, Relay contact rating - 0.5A @ 125 VAC, Power factor - 1.0
Initiating Device Circuits	Wiring style - Class B, Style B/C, Quantity - 4 No’s, Normal operating voltage - 14 – 21 VDC, Alarm current - 15 – 30 mA, Short circuit current - 45 mA (max), Loop resistance - 100 Ω (max), EOL Resistor - 3K9, ½ watt, Standby current - 7 mA (2 mA for detectors)
Programmable Input Circuit	Quantity - 4 No’s, Normal operating voltage - 8 – 12 VDC, Short circuit current - 5 mA (max), Loop resistance - 100 Ω (max), EOL Resistor - 3K9, ½ watt, Standby current - 2.5 mA, Manual release switch - 3 (max)
Mechanical Specification
Dimensions	440W X 350H X 120D
Color	Red / White
Construction	18 Gauge (1.22mm) CRCA sheet with powder-coated finish.
IP Rating	IP50
Cable Entry	11xø19mm Knockout on top of the cabinet, 10xø22.25mm Knockout on top of the cabinet

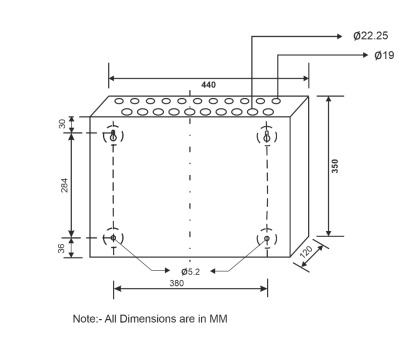

Dimensions

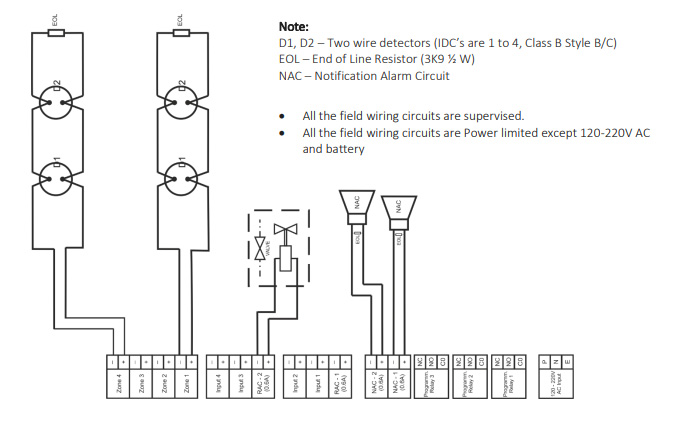

Wiring Diagram

Models	Description
11591NC	Solenoid Valve
PA0337NC	Solenoid Valve
RE-3K9	End of Line Resistor
RE-316S-2L	Conventional photoelectric smoke detector with base
RE-316H-2L	Conventional Heat detector with base
RE-316SH-2L	Conventional multi sensor detector with base
RE-24CS	Conventional sounder / Horn
RE‐716SO	Sounder / Horn - UL Listed
RE‐716SS	Sounder / Horn cum Strobe - UL Listed
RE‐716P1T	Single Action Manual Pull station - UL Listed
RE-716P1TLP(G)	Dual Action Manual Release Station - UL Listed
RE-716P1TLP(Y)	Dual Action Manual Abort Station - UL Listed
RE-716P1TLP(R)	Dual Action Manual Pull Station - UL Listed
