• Fully complies with UL -864 and NFPA-72.
  • Rugged CRCA sheet with powder coated finish.
  • Operates on 110 - 220VAC 50 /60 Hz, AC mains power supply.
  • 16x2 Dot Matrix LCD display.
  • 4/8 Class B Style ‘B ‘ or Style ’C’ Initiating Device Circuit (IDC).
  • All zones accept smoke detectors and normal open contact devices.
  • Any zone can be configured as alarm or supervisory zone.
  • 2 Class B Notification Appliance Circuits (NAC).
  • NAC shall be programmed as silenceable or non-silenceable.
  • Supervisory zone shall be latching or resettable.
  • Standby (battery) backup 24VDC power supply with built in charger.
  • Error free Fire / Fault status in unambiguous colored LED indication.
  • System ON indication.
  • Main & Standby status with audible and visual indication
  • Battery low visual warning with audible tone.
  • Form C relays for fire, fault and supervisory.
  • Resettable / Steady 24VDC Output.
  • RS 485 Communication facility (Optional).
  • Lamp test facility.

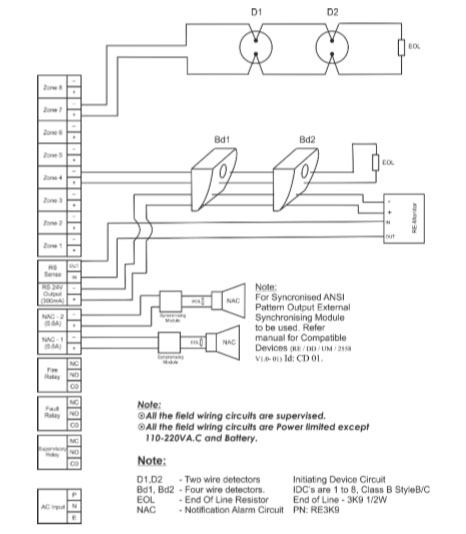

  • All field wiring circuits are power limited except 110-220VAC and battery.
  • All field wiring circuits are supervised.
  • Walk test facility.
  • Zone isolation facility with loop voltage cut off.
  • Earth fault annunciation facility at 0 ohms.
  • AC low voltage cutoff.
  • Programmable AC loss delay.
  • Programmable alarm verification.
  • Programmable trouble reminder.
Special Features
  • Switched Mode Power Supply.
  • Modular Construction.
  • Auto Resettable Fuse.
  • Surge Protection for all Input and outputs.
  • Battery polarity reversible protection.
  • Surface Mount Technology.
  • Over all current consumption is low.
