Conventional Sounder

RE-24CS

Overview

Sounders are designed to simplify installations to provide primary and secondary for fire and security applications. These are ideal where smaller notifications devices are desired. These sounders can be flush / ceiling mounted with / without back box.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

Slim and Sleek.
Wall or Ceiling mountable.
Sounder with Back Box.
24VDC Operation.
Used in Fire, Burglar & Emergency Alarm System.

Electrical Specification
Operating Voltage	18 ~ 32V DC
Operating Current	40 mA (max)
Sound Level	100 ± 5 dB@1m
Operating Temperature	0 - 49° C / 32-120° F
Storage Temperature	0°C to 60°C
Sounder Type	Piezo Electric Type
Tone Type	Fire Engine Vailing
Material	ABS Plastic
Weight	0.35Kg (0.600Kg with Back box) Approx.
Color	Red
Dimensions	(96 H X 76 L X 32 D) mm
Back Box	(95 H X 75 L X 66 D) mm

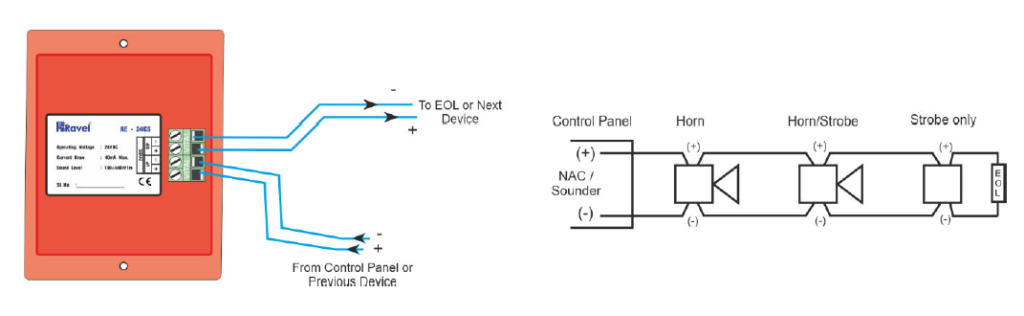

Wiring Diagram

Model	Description
RE‐102	Conventional 2 Zone Fire Alarm Control Panel
RE‐104	Conventional 4 Zone Fire Alarm Control Panel
RE‐2554	Conventional 2 Zone Fire Alarm Control Panel
RE‐2558	Conventional 4 Zone Fire Alarm Control Panel
RE‐900 Series	Conventional Fire Alarm Control Panel
RE‐25AR	Conventional 4 Zone Agent Release Control Panel

Compatible Devices

Model	Description
RE‐717MC	Addressable Control Module
RE-717MR	Addressable Relay Module
RE-717MX	Addressable Input Output Module
