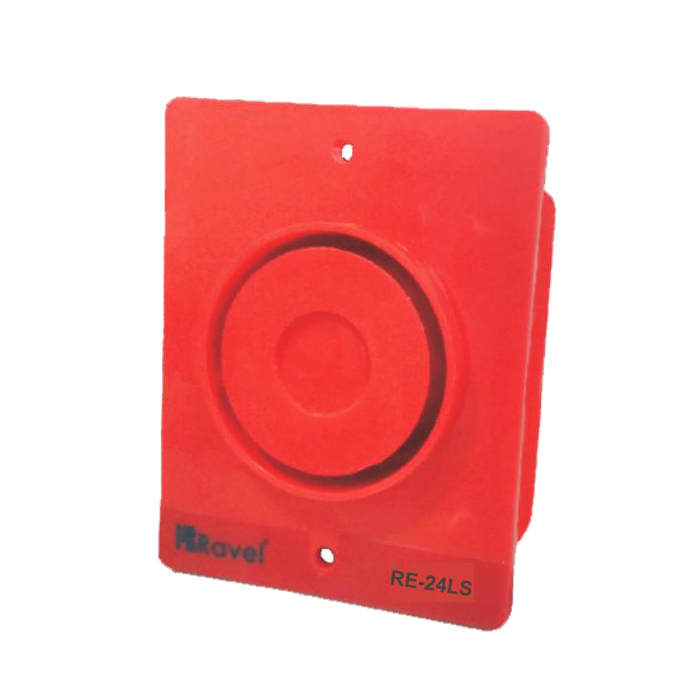

RE-24LS

The RE-24LS range of addressable Loop powered sounder are designed to be connected to analogue addressable Fire Alarm Systems. And these loop powered sounder should be connected to the compatible control panel. The RE-24LS loop powered sounder receives their power from analogue addressable communication loop and it is controlled via addressable communication. The address of these device should be in the range of 128 to 159 addresses and it shall be set by 8 way DIP Switch.

Share This :

Facebook Twitter LinkedIn

Features

Electrical Specification

Wiring Diagram

Tone Selection Chart

Compatible Panel

Ordering Information

Addressing by 8 way DIP switch.
Low Standby Current.
Slim and Sleek.
8 Different tone selection by using 4 way DIP Switch.
Wall or Ceiling Mount.
Inbuilt Isoaltor

Tone	Description
1	Dutch sweep tone @ 970 Hz continuous
2	Din Tone 1200Hz falling to 500Hz over 1 sec
3	French Fire Sound 554Hz for 100ms and 440Hz for 400ms
4	Alternative warble BS standard 800/960 Hz @ 2 Hz
5	US temporal pattern HF 2900 Hz for 0.5s on 0.5s off x 3 then 1.5s off
6	Sweep 800-1000 hz @ 0.5 sec
7	Siren high freq sweep 500-1000 in 0.5 sec
8	Siren low freq sweep 500-1000 in 1.5 sec

Operating Voltage	17 ~ 32 VDC
Operating Current	7 mA
Standby Current	0.5 mA
Sound Level	80 db @ 1m
Operating Temperature	0 - 49° C / 32 - 120° F
Sounder Type	Piezo Electric Type
Tone Type	8 Different Types
Material	ABS Plastic
Color	Red
Mount Type	Surface Mount/Flush mount
Dimensions	95H X 75L X 28D in mm
Back	Box 95H X 75L X 58D in mm

Model	Description
Avani db	Analogue Addressable Fire Alarm Control Panel
RE-4100	Analogue Addressable Fire Alarm Control Panel

RE-24LS

RE-24LS
