NAC Extender / Power Supply Panel
RE-PS5 Ampere
Overview

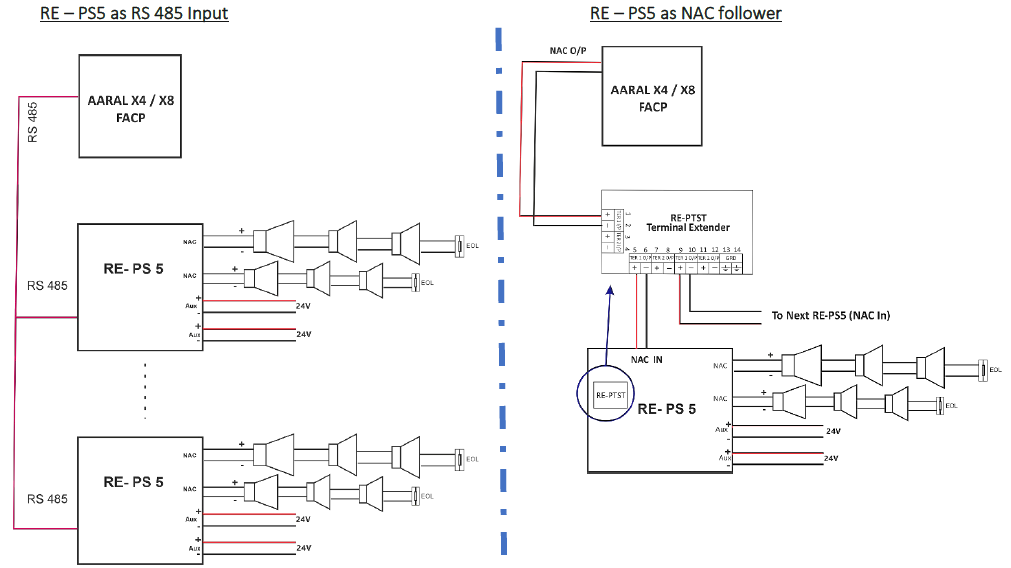

The Power Supply unit is designed in such a way that it meets UL864 10th edition power limiting requirements and RE-PS5 shall be connected to any fire alarm control panel for 24VDC output. The Extended NAC power supply RE-PS5 is equipped with 2 No’s of NAC outputs and 2 No’s of 24VDC outputs. These NAC outputs shall be activated with respect to the NAC Follower Input or RS485 Input and NAC follower has the high priority. While connecting it with AARAL through RS485, all the events of the RE-PS5 will be communicated to FACP and recorded as an event. Each NAC & 24VDC output in power supply RE-PS5 shall provide 24VDC @ 1.0 Amps maximum current.
The RE-PS5 is compact and cost-effective Power Supply within built charger. It provides power capabilities of existing notification appliance circuits and for other ancillary devices.
Share This :
- Listed to UL 864 10th edition.
- Operates on 110 – 230 VAC.
- System ON, Mains and standby status indication.
- Standby battery backup with built in charging.
- One remote alarm input.
- One Form-C Common fault relay.
- 2 No’s of 24VDC output with short circuit protection.
- 2 No’s of NAC output with short circuit protection.
- AC Loss Delay facility.
- Auto Silence facility.
- Trouble Reminder facility.
- All field wiring is power limited and supervised except battery and AC Input.
- Inbuilt Keys for Acknowledge & Restart.
- Ground fault detection facility @ 0 Ohms.
- Inbuilt RS 485 Bus communication.
- Addressing by 8 way DIP switch.
- System(field) Configurations using 8 way DIP switch.
