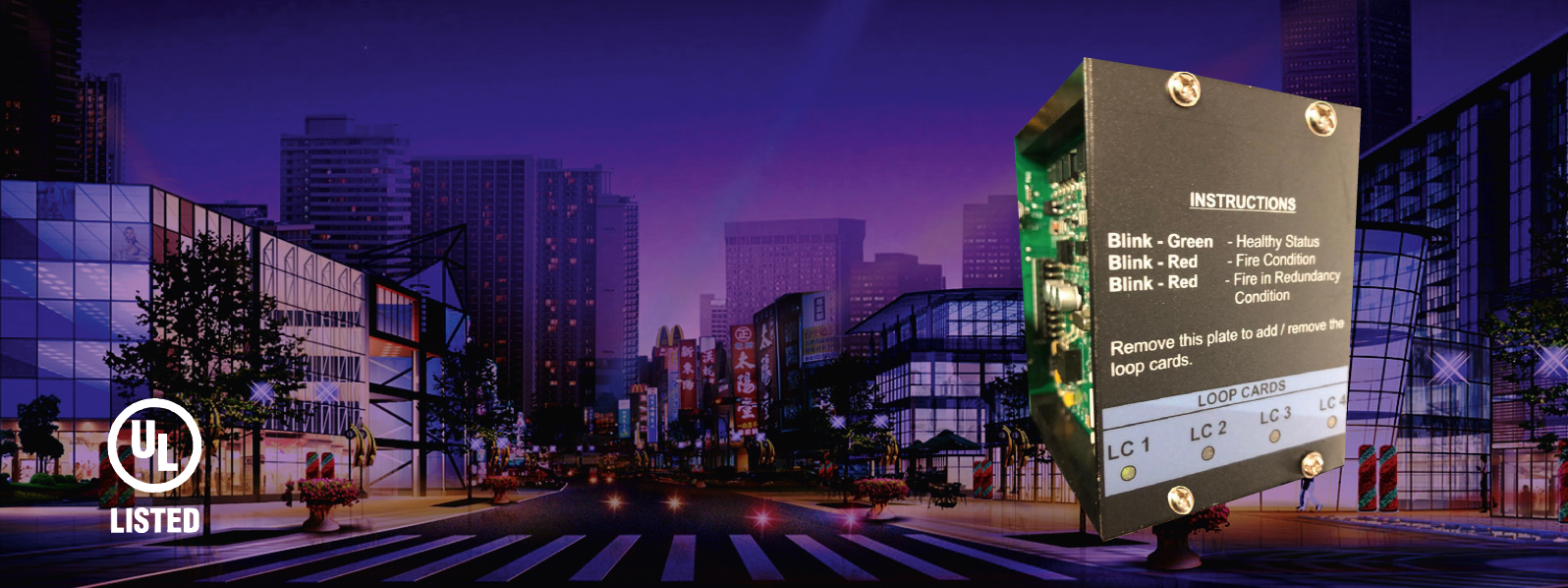

Addressable Loop Card for Avani Panel

Avani – LC

Overview

A Loop Card for Analogue Addressable Fire Alarm Control Panel can connect upto 254 devices in a single loop card. These loop card can plugged in to slot provided in the motherboard of Main panel (AVANI). RE-LC Loop Card is compatible with Addressable Detectors, Manual Call Points, Modules etc., The status of the loop shown by dual colour LED.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL Listed (9th edition)
Loop card can programmable as Class A, Style 5,6 or 7 and Class B Style 4 wiring.
Maximum 254 devices (any combination) per loop.
Auto Addressing and Easy Swapping.
Low Standby Current.

Electrical Specification
Number of Devices per loop	254
Loop resistance	40 ohms (Max.)
Loop capacitance	0.6 μf (Max.)
Loop Current	300mA (Max.)
Operating Voltage	24VDC
Operating Temperature	0 - 49° C / 32-120° F
Relative Humidity	93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F
