Addressable Back Box for Manual Pull Station

RE – 717 PMB

Overview

Manual pull station back box is compatible with manual pull station single / dual action. It has an in-built module to integrate the manual pull station with addressable fire alarm control panel. Blinking LED for normal condition and study LED for manual pull station activated condition. DIP switches are provided for addressing the devices.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

Analogue Communication with the panel.
Addressing by 8 way DIP switches.
Low Standby Current.
Blinking LED for normal condition and steady LED for manual pull station activated condition
Available with suitable back boxes.

Electrical Specification
Operating Voltage	17V - 28V DC
Alarm Current	2.5 mA Max.(Latched)
Standby Current	0.5 mA
Temperature Range	0°C to 49°C / 32°C‐ 120°F
Storage Temperature	0°C to 60°C
Humidity	93 ± 2% RH (non‐condensing) at 32 ±2° C / 90 ±3° F
Dimensions	(84W x 124L x 54D) mm
Weight	480 grams

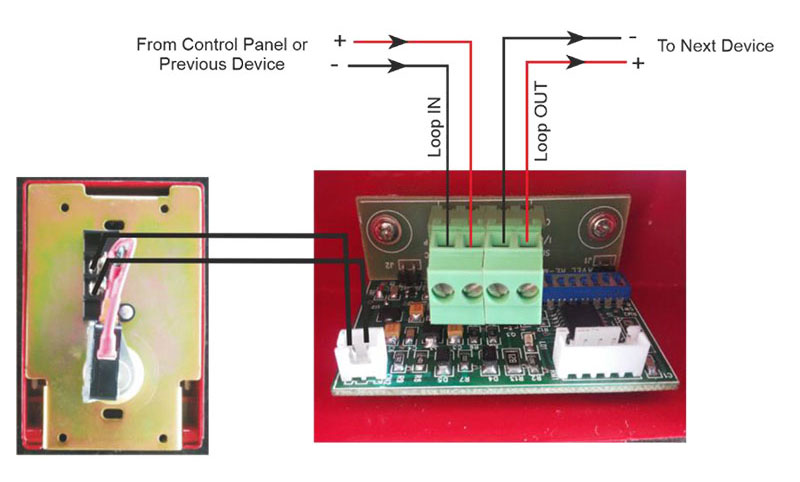

Wiring Diagram

Model	Description
AVANI	Analogue addressable Fire Alarm Control panel expandable upto 4 loop
AVANI DB	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop
RE-716 P1T	Manual Pull Station – Single Action ‐ Red
RE‐716 P1TLP	Manual Pull Station – Dual Action ‐ Red

Addressable Back Box
for Manual Pull Station

Addressable Back Box for Manual Pull Station

RE – 717 PMB

Overview

Wiring Diagram
