Addressable Zone Interface Module

RE – 717 MZ

Overview

Zone Interface module permits the addressable FACP to interface and monitor 2-wire / 4-wire conventional smoke detectors and manual call point. The Zone module is addressed by using the DIP switch to communicate with addressable FACP. It transmits the status (normal, open, short or alarm) of one zone of 2-wire / 4- wire detectors to the FACP. Zone module supervises the zone of detectors and the connection of the external power supply respectively.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

Complies UL standard.
CE Approved.
Module Status by RED LED.
Analogue Communication with the panel.
Module Addressing by 8 way DIP Switches.
Low Standby Current.
24V Monitoring resettable output
Available with suitable back boxes.

Electrical Specification
Operating Voltage	24 VDC Nominal
Current Draw(SLC)	0.5mA, (2 mA Max. Latched)
External Supply Voltage	Regulated 24VDC
External Supply Standby Current	5mA
External Supply Alarm Current	60mA Max
Loop Impedance	40 Ohms
End Of Line Resistor	4.7K Ohms
Temperature Range	0°C to 49°C / 32° to 120°F
Storage Temperature	0°C to 60°C
Humidity	93 ± 2% RH (non-condensing) at 32 ± 2° C / 90 ± 3° F

Mechanical Specification
Dimension	(95 W X 75 H X 24 D) mm
Color	Black
Weight	0.5 Kg

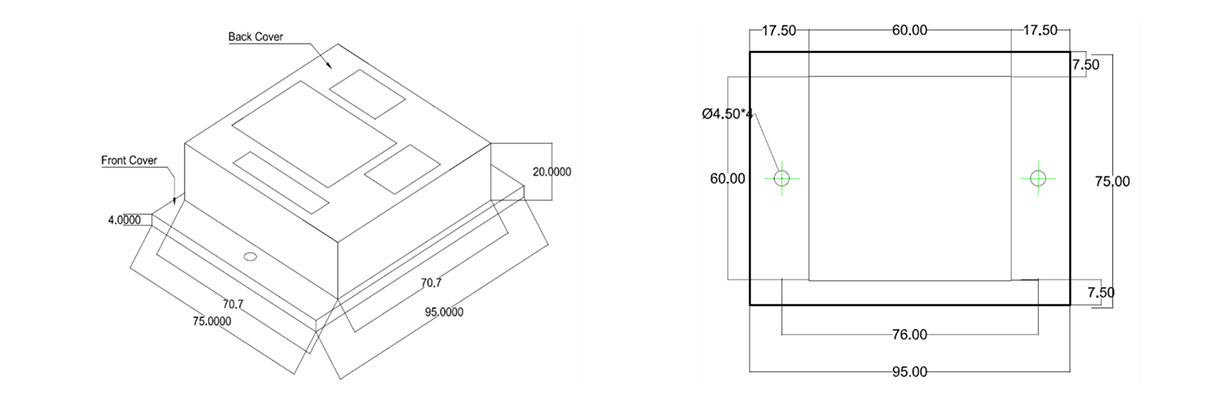

Dimensions

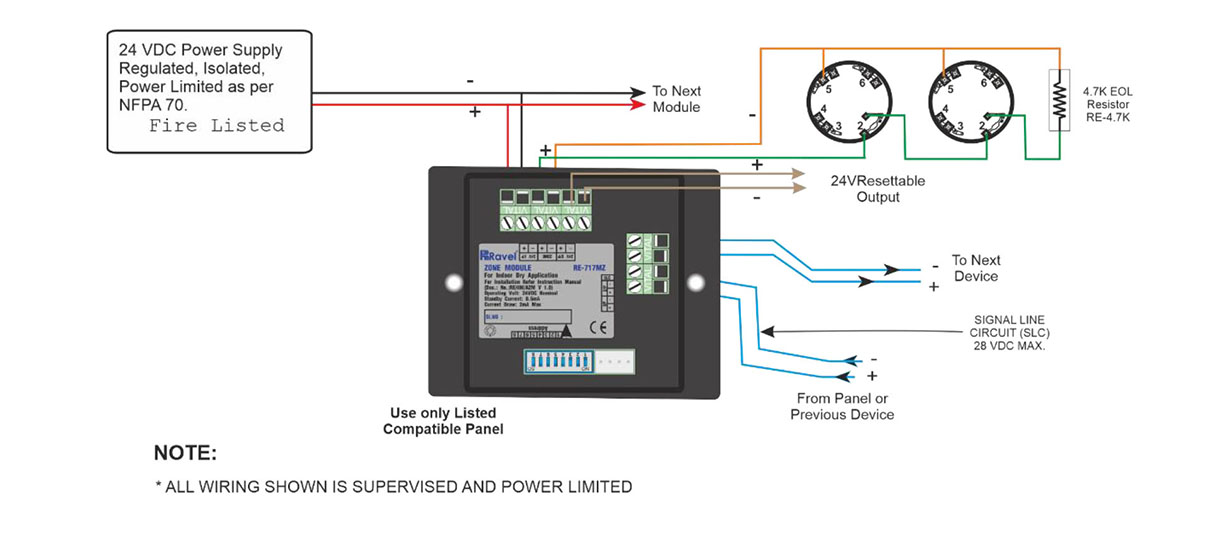

Wiring Diagram

Compatible Panels

Model	Description
AVANI	Analogue addressable Fire Alarm Control panel expandable upto 4 loop
AVANI db	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop

Compatible Devices

Model	Description
RE-316S-2L	Conventional Photoelectric Smoke detector with base.
RE-316H-2L	Conventional Heat detector with base
RE-316SH-2L	Conventional Multi sensor detector with base
RE-428 Series	Optical Beam Detector
EazyBeam	Beam Detector
