Addressable Control Module
RE – 717 MC
Overview

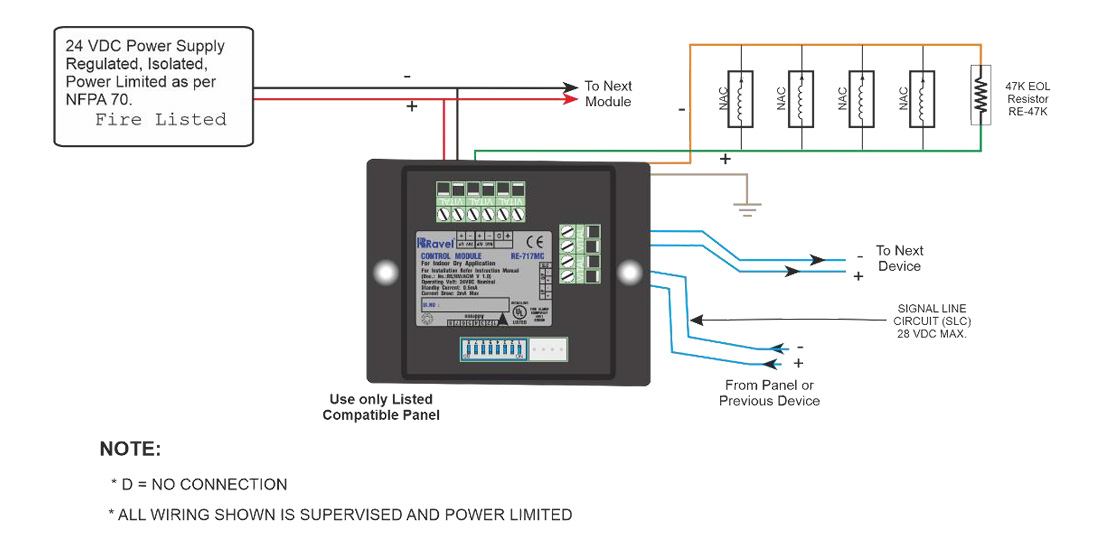

Control Module is the remote switching device to control 24V operating devices like Bells, Sounders, Strobes, etc. The required supply is drawn from a 24V power supply unit. The RED blinking LED indicates normal operating conditions and the steady state LED for activated conditions. DIP switches are provided for addressing of the module. The output and auxiliary input voltage is supervised for faulty condition.
Share This :
- UL-Listed (9th Edition).
- CE Approved.
- Supervised a Class ‘B’ Style ‘Y’ output circuit.
- Module Status by RED LED.
- Analogue Communication with the panel.
- Addressing by 8 way DIP switches.
- Low Standby Current.
- Available with suitable back boxes.
- Modular Construction.
