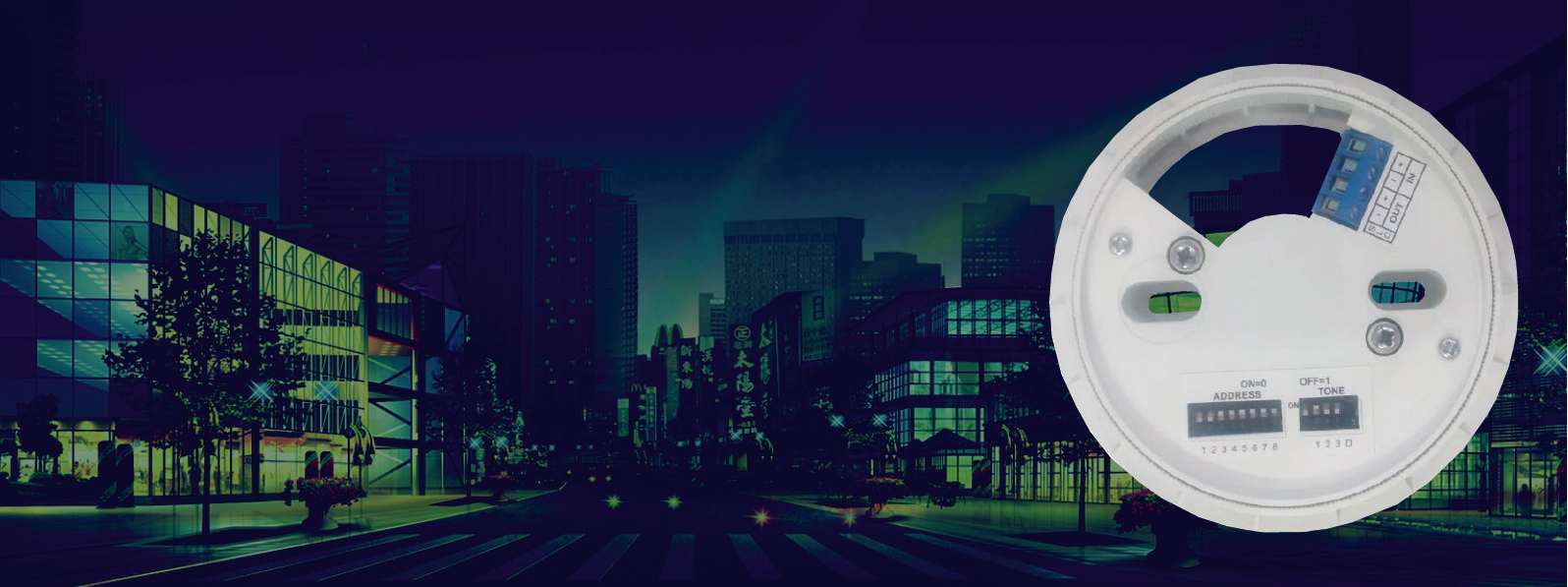

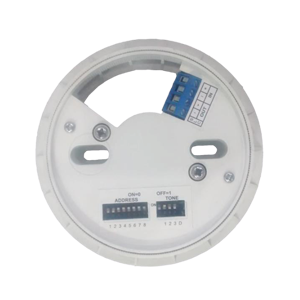

Addressable Loop Powered Sounder Base

RE-354BS

Overview

The Loop powered sounder base are designed to be connected to analogue addressable Fire Alarm System and these loop powered sounder base should be connected to the compatible control panel. The RE-354BS loop powered sounder base receives their power from analogue addressable communication loop (SLC) and it is controlled via addressable communication. The address of these device should be in the range of 128 to 159 addresses and it shall be set by 8 way DIP switch.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

Loop powered Sounder Base
Addressing by 8 way DIP switch.
Low Standby Current.
Slim and Sleek.
8 Different tone selection by using 4 way DIP Switch.

Operating Voltage	17 ~ 32 VDC
Operating Current	7 mA
Standby Current	0.5 mA
Sound Level	80 db @ 1m
Operating Temperature	0 - 49° C / 32 - 120° F
Sounder Type	Piezo Electric Type
Tone Type	8 Different Types
Material	FR ABS
Color	White
Mount Type	Ceiling mount
Dimensions	120mm Dia (100mm Base mountable)
IP Rating	IP40

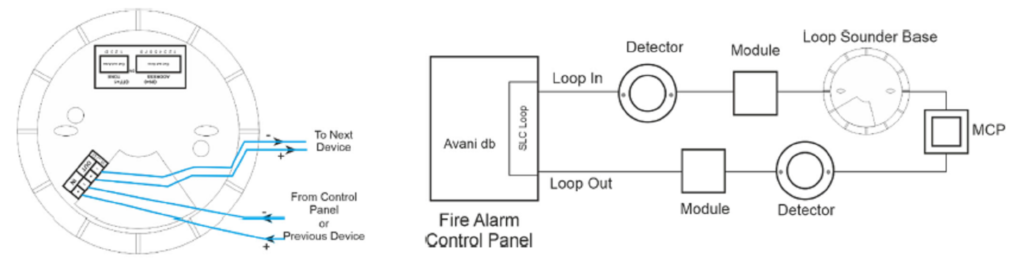

Wiring Diagram
