Addressable Smoke Detector

RE – 317 D SL

Overview

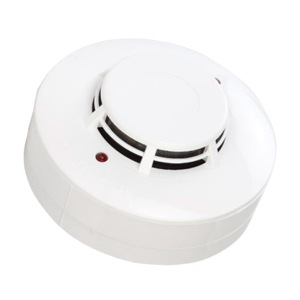

Addressable photoelectric smoke detector is designed to work with Avani Panel. These detectors are low profile and have dual LED’s, polarity free and 360° visual indication. The LED’s are blinking in normal operating condition whereas the steady state indicates fire status. It has an unique chamber designed to sense smoke produced by wide range of sources of combustion with insect free. The detectors sensitivity can be programmed through fire alarm control panel. It has a unique drift compensation where the detector adjusts its normal reference based on environment conditions.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL listed and NFPA standard.
Polarity free, and Dual LED’s for 360° visibility.
Advanced detection and communication protocol.
Easy to install.
Sleek low‐profile housing design.
Regular 100 mm base.
Address set by 8 digit DIP switch.

Electrical Specification
Operating Voltage	17 ~ 28V DC.
Reset Voltage	Less than 3V.
Standby Current	500 μA.
Start up Time	30 sec.
Alarm Current	5 mA .
Remote Output	2mA maximum open collector.
Smoke Sensitivity	(2.12 ± 0.61) % obs/ ft (High: 1.1% obs/ft; Medium: 1.4% obs/ft; Low: 2.3% obs/ ft).
Air Velocity	0 – 4000 fpm.
Detector Spacing	9 meters.
Operating Temperature	-10° C to 37.8° C.
Storage Temperature	-10° C to 60° C.
Humidity	0 – 95% RH, non-condensing.
Mechanical Specification
Dimension	46 H x 100 D ( mm)
Weight	150 g with base
IP Rating	IP-42

Wiring Diagram

Compatible Devices

RE-314B	Normal Base
RE-314BI	Isolator Base

Compatible Panels

Model	Description
AVANI	Analogue addressable Fire Alarm Control panel expandable upto 4 loop
AVANI db	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop
