Addressable Heat Detector

RE – 317 D HL

Overview

Addressable heat detector(s) are designed to work with Addressable Fire Alarm Control Panel. These detectors are low profile, polarity free and have dual LED’s for 360° visual indication. The LED’s are blinking in normal operating condition whereas the LED’s in steady state indicate alarm status.
Addressable heat detector is a fixed cum rate of rise heat detector using a thermistor. These detectors will raise an alarm when the detector reaches 59°C (Fixed) or when the change in temperature exceeds the rate of rise of 11°C / min.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL listed and NFPA standard.
Polarity free, Dual LED’s for 360° visibility.
Fixed Temperature & rate of rise detection
Advanced detection and communication protocol.
Easy to install.
Sleek low‐profile housing design.
Regular 100mm base.
Address set by 8 digit DIP switch.

Electrical Specification
Operating Voltage	17 ~ 28V DC.
Reset Voltage	Less than 3V.
Standby Current	500 μA.
Start up Time	30 sec.
Alarm Current	5 mA .
Remote Output	2mA maximum open collector.
Detector Spacing	9 meters.
Fixed Temperature	59° C (138° F).
Rate of Rise Temperature	11.1° C / min (20° F/min).
Operating Temperature	-10° C to 37.8° C.
Storage Temperature	-10° C to 60° C.
Humidity	0 – 95% RH, non-condensing.
Mechanical Specification
Dimension	46 H x 100 D ( mm)
Weight	150 g with base
IP Rating	IP-42

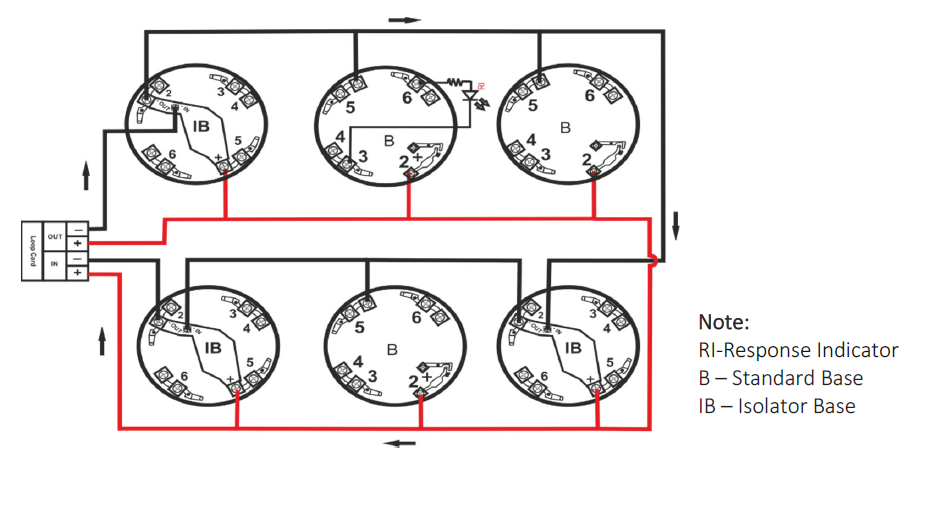

Wiring Diagram

Compatible Devices

RE-314B	Normal Base
RE-314BI	Isolator Base

Compatible Panels

Model	Description
AVANI	Analogue addressable Fire Alarm Control panel expandable upto 4 loop
AVANI db	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop
