Overview

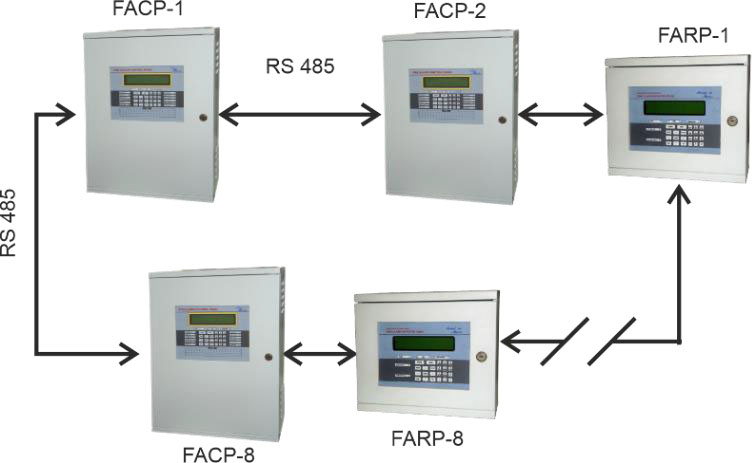

The Avani-RP repeater panel is a compact remote unit for Ravel-Avani Intelligent analogue addressable fire alarm panel. It repeats all the indications of fire alarm control panel in standalone or in a peer-to-peer network Panel. It has (40X4) 160 character LCD Display. This repeater is connected to Avani control panel using RS 485 communication network. Any communication fault or any loss in communication due to cable fault is indicated in this repeater panel. The display parameters can be selected individually to suit the requirement of each remote area.
Special Features
- Modular Construction, Servicable.
- Networkable.
- User selectable display parameters.
Share This :
- UL listed (9th Edition).
- 32 bit processor.
- 160 (40X4) character LCD Display.
- 2000 Event with Real Time Clock.

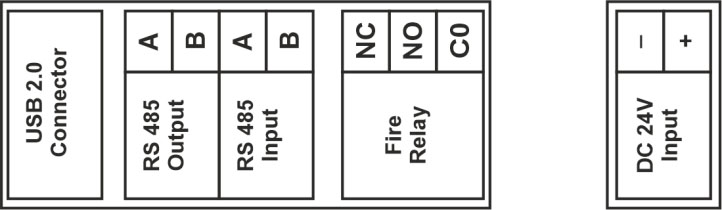

- RS 485 communication for Network / Repeater.
- One form C relay for fire.
- Extensive built in transient protection.
- Lamp test facility.
- Common fire, supervisory, fault LED indication.
