Addressable Panels

Avani Db-R/W-1L

Overview

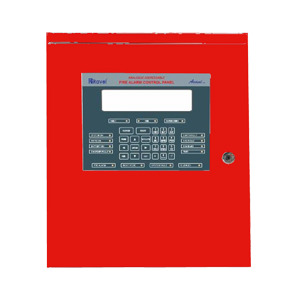

The Avani db is a cost effective, intelligent addressable fire alarm control panel having an extensive list of powerful features. The power supply, master control and indicating boards housed in a metal cabinet, provide a complete fire control system for most applications. The panel has maximum capability for two loops, which are plugged into the main circuit board. There is an option for local programming of the control panel using configuration software, upload/download utility.

Type of Colors

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

Operates on 120 to 220V AC, 60 / 50 Hz.
Battery Backup 24V DC with Built in charger.
40 x 4 Characters LCD display.
Touch keypad for user friendly operation.
Loop with Class A or Class B wiring.
Maximum 159 Devices including 32 Loop Sounder & Sounder - strobe.
Upto 192 Grouping Facility.
Auto learning facility.
Device / Detector wise Configuration facility.
2000 Event storage with Real Time Clock.
USB 2.0 Interface for PC connectivity.
RS 485 communication for repeater.
Maximum 8 repeaters can be connected.
Two Programmable Form C relay for fire and supervisory and One Form C relay for fault.
24V DC output.
One Supervised Notification Appliance Circuit.(NAC).

Electrical Specification
Primary Power	120 / 220VAC + 10% -15%, 60 / 50 Hz. 100W
Standby Power	24V D.C (2 No’s of 12V, 7 Ah (max)) Sealed Lead acid battery
Operating Condition	Operating Temperature 0 - 49° C / 32-120° F. Relative Humidity 93 ± 2% RH (non-condensing) at 32 ±2° C / 96 ±3° F.
Charging Circuit	Charging Voltage 28 V, ±0.5V Nominal Charging Current 0.8A (max)
Signaling Line Circuits	Quantity - 2 No’s (max) No. of devices per loop - 127 + 32 (LS) Loop resistance - 20 Ω (max) Loop capacitance - 0.3 μf (max) Loop current - 300 mA (max)
Notification Applicance Circuits	Wiring style - Class B, Style Y Operating Nominal Voltage - 24 VDC Nominal Current for NAC’s - 1.0A Line drop - 2.4V EOL resistor - 4K7, ½ watt
DC Output	Supervised 24VDC, 300mA (max)
Programmable Relays	Type - Form C No of Relays - 3 Relay contact rating - 2A @ 30 VDC, 0.5A @ 125 VAC
RS485 Serial Port	Baud rate - 19200 Connector - RS485 – A-B Terminal Block Maximum cable length - 1200m (1.5 sq.mm screened calbe)
Mechanical Specification
Dimensions	(350W X 400H X 100D)mm
Color	White / Red / Black
Construction	18 Gauge (1.2 mm) CRCA sheet with powder-coated Finish
IP Rating	IP50
Cable Entry	8xø19mm Knockout in top of the cabinet 8xø22.25mm Knockout in top of the cabinet
Weight	10 Kg

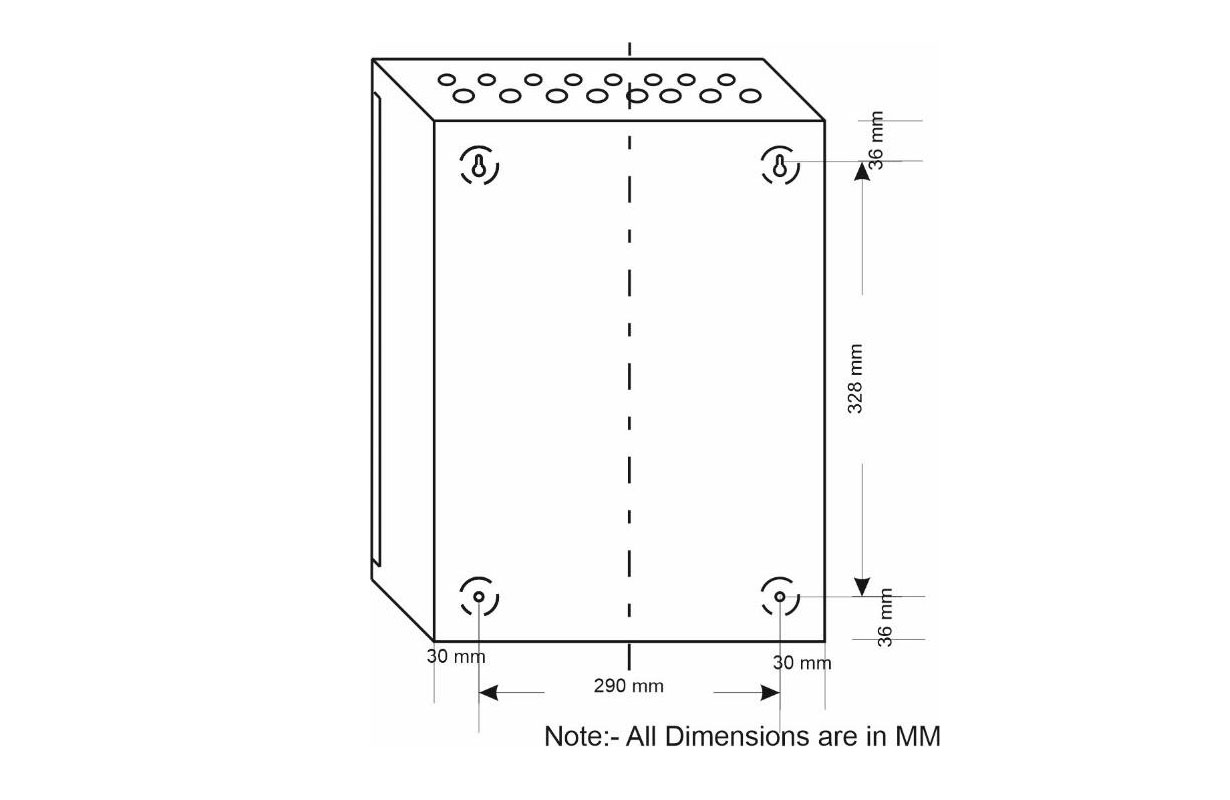

Dimensions

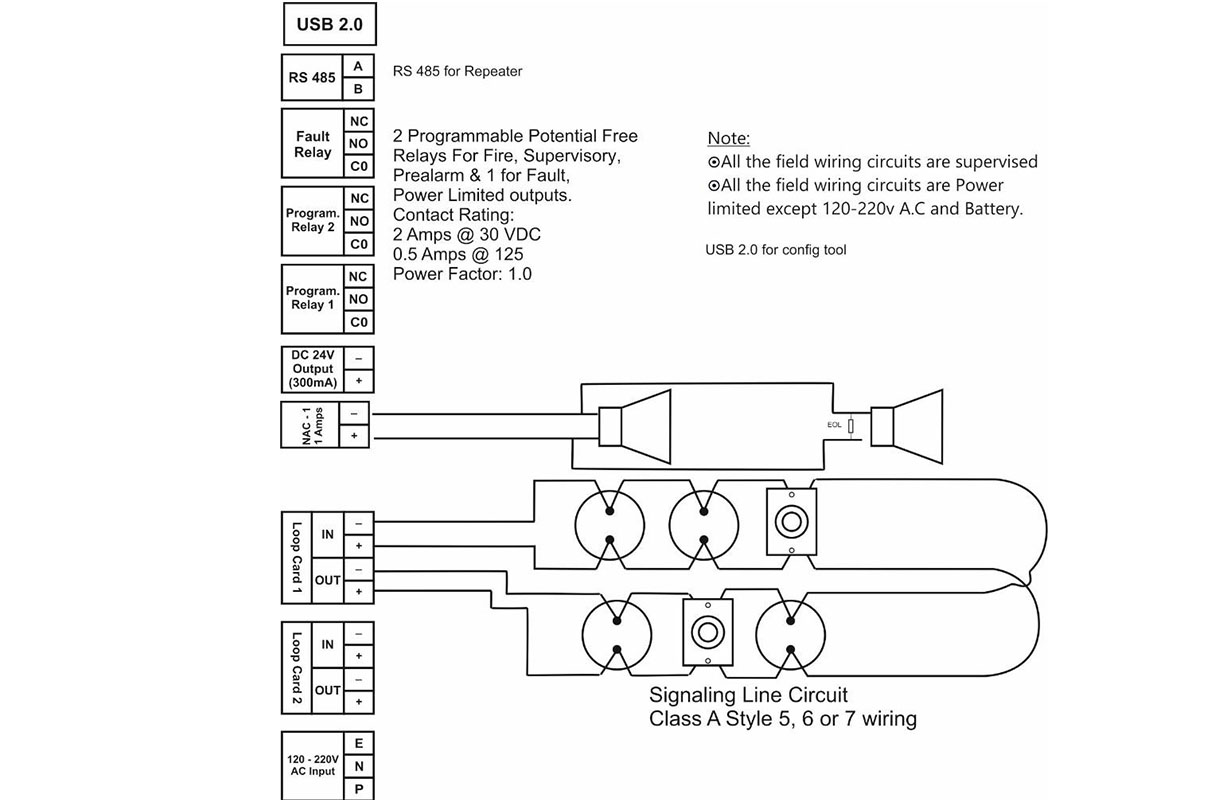

Wiring Diagram

Model	Description
RE–317D–SHL	Photoelectric & Heat Detector
RE–317D–SL	Photoelectric Smoke Detector
RE–317D–HL	Heat Detector
RE–717MC	Control Module
RE–717MM	Monitor Module
RE–717MR	Relay Module
RE–717MI	Isolator Module
RE–717M	Manual Call Point
RE-314BI	Isolator Base
RE-354BS	Loop Sounder Base
RE-24LS	Loop Powered Sounder
RE-4K7	End of Line Resistor
RE-717SO	Loop powered Addressable Sounder
RE-717SS	Loop powered Addressable Sounder & Stroube
Avani db RP	Addressable Repeater Panel

1 Loop Analogue
Addressable FACP
