Avani

Overview

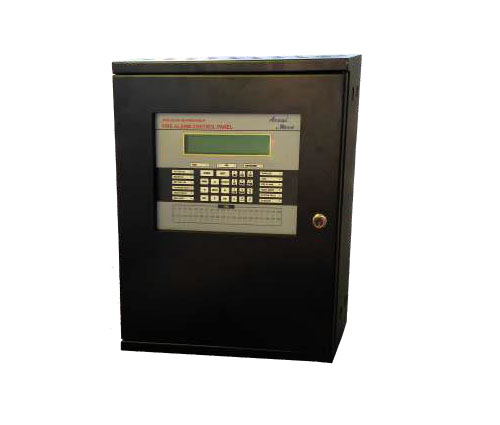

AVANI is a cost effective and analogue addressable fire alarm control panel having an extensive list of powerful features. The panel has maximum capability for four loop cards, which are plugged into the main circuit board. Higher loop requirements can be catered to using the networking feature of the fire alarm
control panel. There is an option for remote and local programming of the control panel using configuration software / Avani soft upload/download utility.

All the PCB’s are mounted over a stud and the power supply boards is secured by a separate metal box.

Special Features

Indian Manufacturer – International standard.
UL Listed (9th Edition).
Switched Mode Power Supply.
Modular Construction, Serviceability.
Networkable.
Auto Resettable Fuse.
Surge Protection.
Battery polarity protection.
32 bit processor.
Unique protocol feature for fast alarm response.
Inbuilt conventional circuit.
Touch Keypad for user friendly operation.
Auto learning facility.
Multi protocol.
Peer to Peer Networking.
Redundancy : If the main CPU fails, it will raise an alarm like conventional panel.

Share This :

Facebook Twitter LinkedIn

Features

Specification

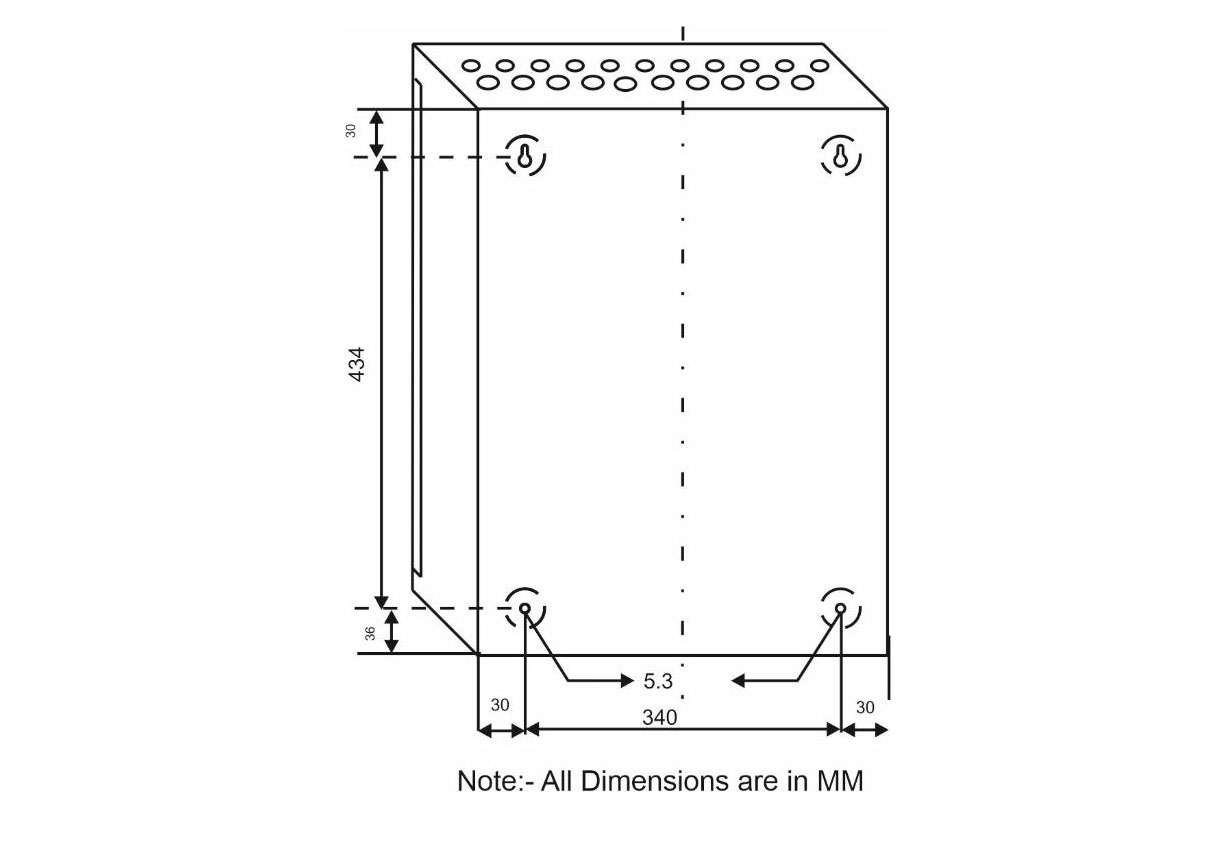

Dimensions

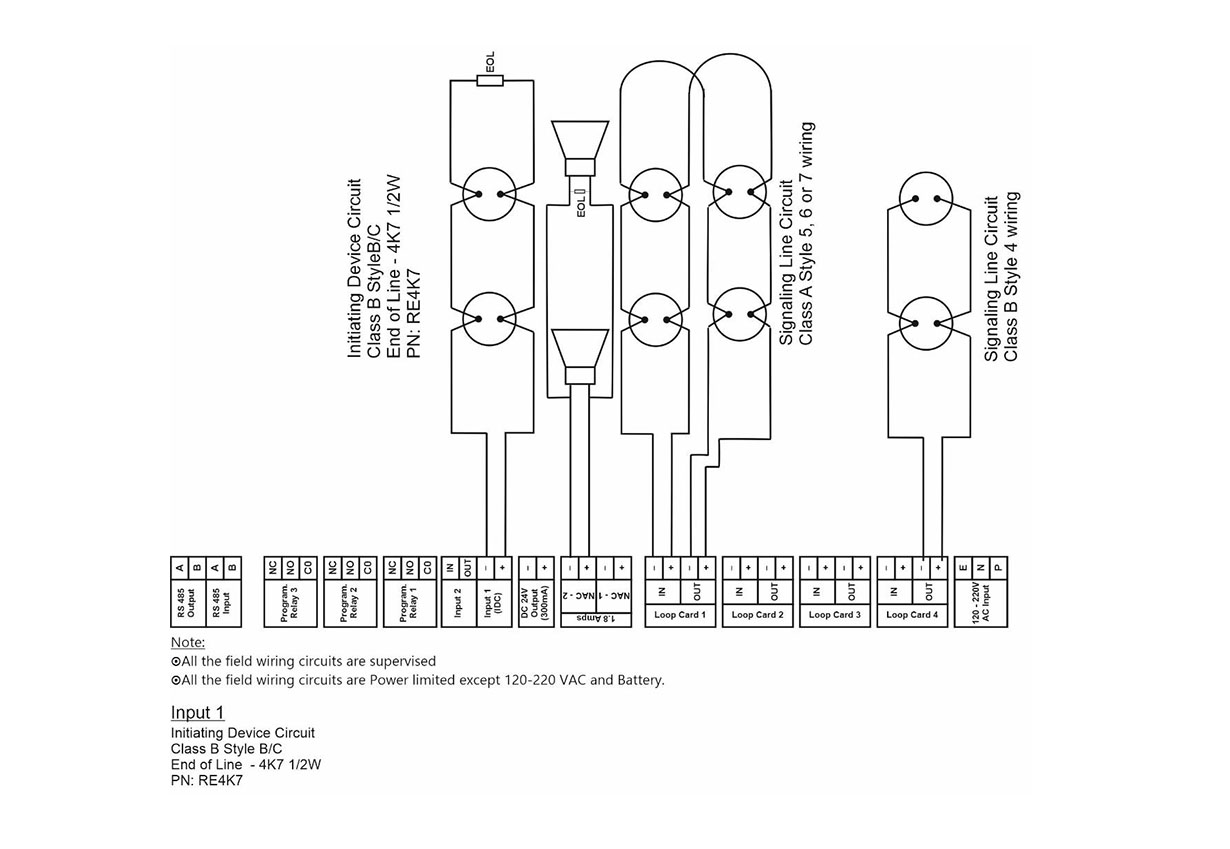

Wiring Diagram

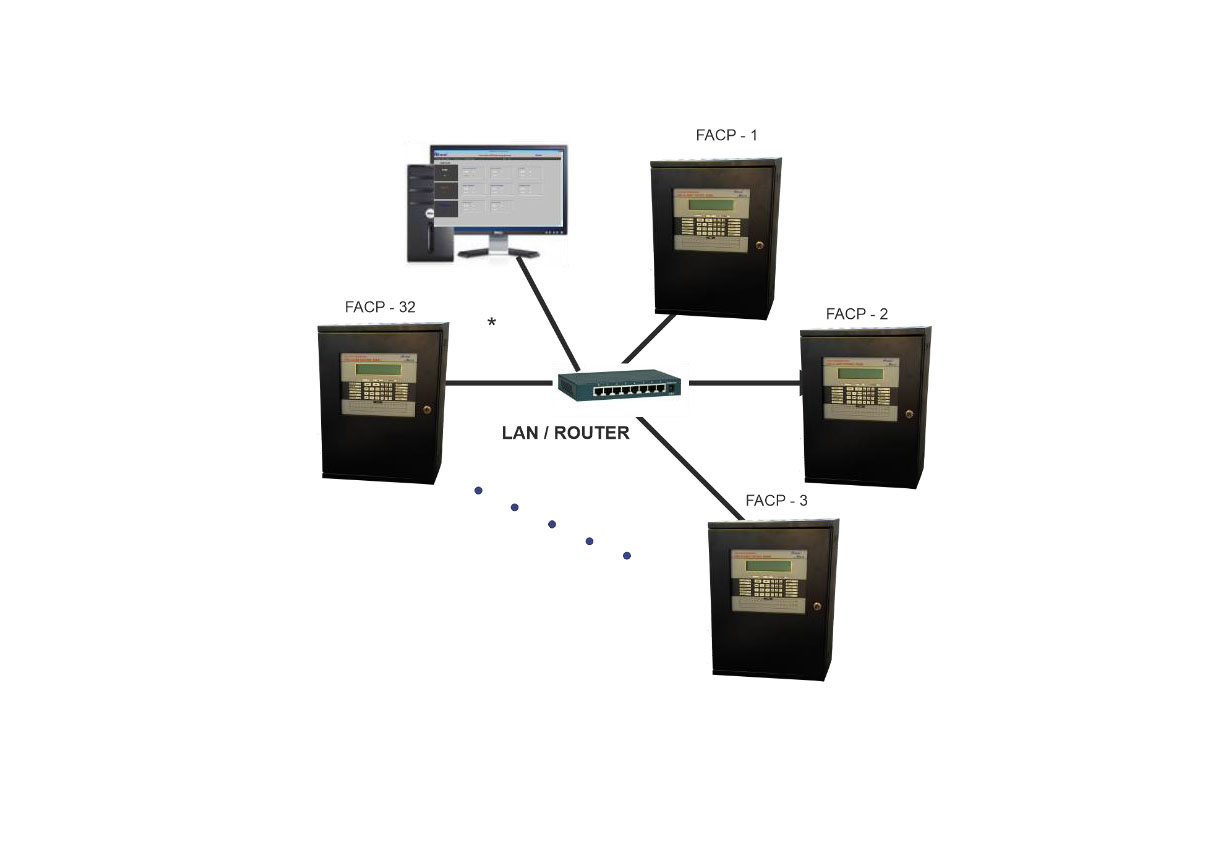

IP Based Network

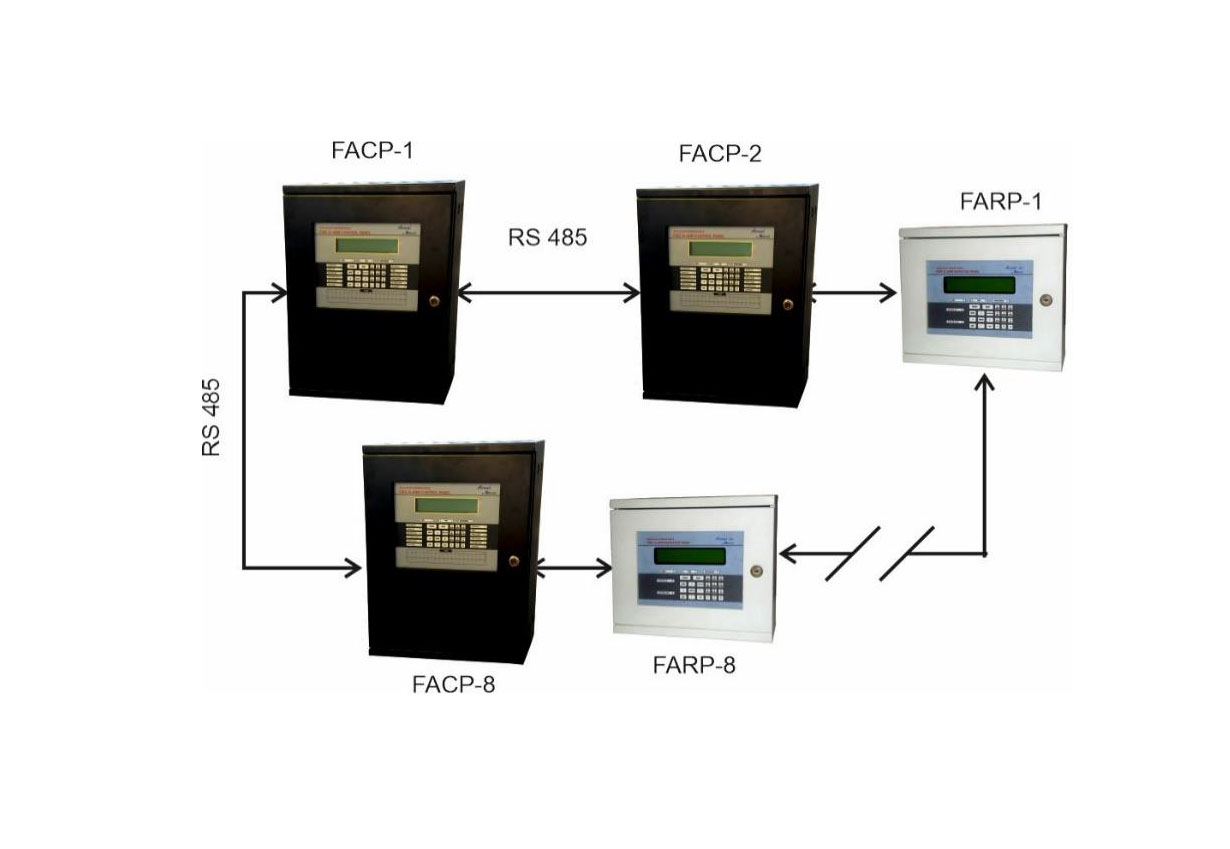

Peer-to-Peer Network

Compatible Device

Ordering Information

Device / Detector wise configuration facility.
2000 Event Storage with Real Time Clock.
Upto 192 grouping facility.
Pre Alarm Action.
All field wiring are power limited and supervised.
Programmable detector sensitivity.
Device type verification.
Earth fault annunciation facility at 0 ohms.
Double Address Sensing.
Loop wise remote device test.
40 X 4 Characters LCD display.
5 IDC Loops (4 Addressable and 1 Conventional loop).
Maximum 4 numbers of loop card with Class A, Style 5,6 or 7 and Class B Style 4 wiring.
Maximum 254 devices (any combination) per loop.
Day / Night Mode facility.
USB 2.0 Interface for PC connectivity.
RS 485 Communication facility for Network / Repeater
Programmable Auto Silence Facility.
Programmable AC Loss Delay.
Programmable Silence Inhibit.
Two programmable Inputs for Evacuate, Remote Silence & Conventional Zone.
Battery low audio, visual warning.
Three programmable Form C relay for Fire, Fault and Supervisory.
Two no’s of Supervise Notification Appliance Circuits.

Electrical Specification
Primary Power	120 / 220VAC + 10% – 15%, 60 / 50 Hz, 450W
Standby Power	24VDC (2 No’s of 12V 40 Ah (max), built-in for 17Ah) sealed lead acid battery
Operating Condition	Operating temperature 0 – 49° C / 32 – 120° F Relative humidity 93 ± 2% RH (non-condensing) at 32 ± 2° C / 90 ± 3° F
Charging Circuit	Charging voltage 28 V, ± 2% nominal Charging current 1.2A (max)
Notification Appliance Circuits	No of circuits - 2 Wiring style - Class B, Style Y Operating Nominal Voltage - 24 VDC Nominal NAC-1 & NAC-2 Current - 0.9A per circuit (max) Line drop - 2.4V EOL resistor - 4K7, ½ watt
DC Output	Quantity - 1 No Voltage - 24VDC Current - 300mA (max)
Programmable Relays	Type - Form C No of Relays - 3 Relay contact rating - 2A @ 30 VDC, 0.5A @ 125 VAC Power factor - 1.0
Signaling Line Circuits	Quantity - 4 No’s (max) No. of devices per loop - 254 No’s Loop resistance - 40 Ω (max) Loop capacitance - 0.6 μf (max) Loop current - 300 mA (max)
Initiating Device Circuits	Wiring style - Class B, Style B/C No of conventional zone - 1 Normal operating voltage - 14 – 21 VDC Alarm current - 15 – 30 mA Short circuit current - 45 mA (max) Loop resistance - 100 Ω (max) EOL Resistor - 4K7, ½ watt Standby current - 7 mA (2 mA for detectors)
Programmable Input Circuit	Quantity - 1 No Normal operating voltage - 4 – 8 VDC Short circuit current - 3 mA (max) Loop resistance - 100 Ω (max) EOL Resistor - 4K7, ½ watt Standby current - 1.25 mA
RS 485 (optional)	Baud rate - 19200 Baud Connector - RS 485 Cable Length - 1200m (screened cable recommended)

Mechanical Specification
Dimension	(95 W X 75 H X 24D) mm
Weight	0.35 Kg
Color	Black

RE–317D–SHL	Photoelectric & Heat Detector
RE–317D–SL	Photoelectric Smoke Detector
RE–317D–HL	Heat Detector
RE–717MC	Control Module
RE–717MM	Monitor Module
RE–717MR	Relay Module
RE–717MX	Input Output Module
RE–717MZ	Zone Module
RE–717MI	Isolator Module
RE–717M	Manual Call Point
RE–AMB	Modbus Converter
RE–517ME	Ethernet Module
RE–717PT	Printer Module
Avani – RP	Fire Alarm Repeater Panel
RE-314BI	Isolator Base
RE-515MP-A4	Mimic Display System – 32 LED Panel (max)
RE-515MP-A3	Mimic Display System – 64 LED Panel (max)
RE-515MP-A2	Mimic Display System – 128 LED Panel (max)
RE-515MP-AX	Mimic Display System – 512 LED Panel (max)
RE-4K7	End of Line Resistor
RE-716P1T	Manual Pull Station Single Action
RE-717PMB	Back Box with Monitor Module
Avani – SOFT	Graphics Software
Avani – CMS	Central Monitoring Software
RE-ACT	Addressable Configuration Tool

Model	Description
Avani – W / R / B	Analogue addressable FACP expandable upto 4 loop
Avani LC	Analogue addressable loop card

Note: W – White color R – Red Color B – Black Color
